SHOTCRETING AND REFRACTORY
Wet mix

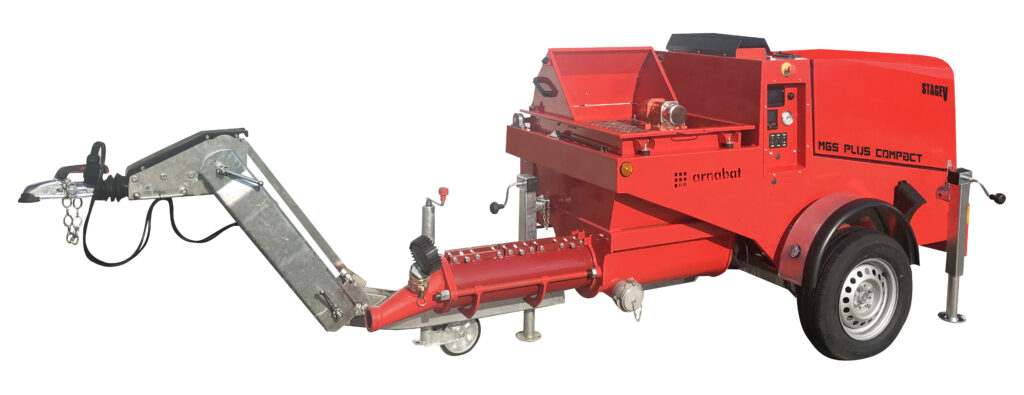

MGS PLUS COMPACT
Self-levelling screed conveyor, gunite spray, transport of mortar, plastering
MGS PLUS COMPACT STAGEV is worm screw pump for a large volume.
Ideal pump for worksites where long distances are required. Pumpable grain size up to 12 mm.
Manufactured with top brand components.
Features:
- Anhydrite or cement based self-levelling screeds.
- Formwork filler mortars.
- Self-compacting concretes.
- Fluid concretes with fibres.
- 4 CYLINDER DIESEL MOTOR: 45 CV(Kubota Turbo)
- SCREW PUMP: 2L8 / 1,5 L8 / 75.15 / 60-12
- MAXIMUM FLOW*: 15 m3/h
- MAXIMUM PRESSURE: 25 bar
- MAXIMUM PARTICLE SIZE: 12 mm
- HOPPER CAPACITY: 200 L
- WEIGHT TOTAL MGS: 750 Kg
- HEIGHT: 1.400 mm
- LENGTH: 3.100 mm (folded lift) – 4.000 mm (extended lift)
- WIDTH: 1.450 mm
* Depends on the material, consistency and diameter of the tubes.
* Total weight of the pump without stators and rotors.
* Option to mount other models of stators and rotors.
