SHOTCRETING AND REFRACTORY
Wet mix

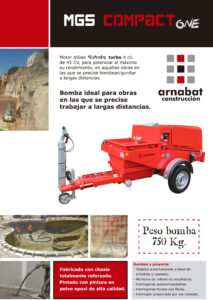

MGS COMPACT ONE
Self-levelling screed conveyor, gunite spray, transport of mortar, plastering
MGS COMPACT ONE STAGEV
Ideal pump for worksites where long distances are required. Pumpable grain size up to 12 mm. Manufactured exclusively with top brand components.
Optional:
High-pressure washer, foldable hopper, height-adjustable supports, electronic display with three options: Gunite, Self-levelling mortex pumping, Micro-concrete pumping (aggregate up to 12mm)
Features:
- Anhydrite or cement-based self-levelling screeds.
- Formwork filler mortars.
- Self-compacting concretes.
- Fluid concretes with fibres.
- 4 CYLINDER DIESEL MOTOR: 45 CV(Kubota Turbo)
- SCREW PUMP: 2L8 / 1,5 L8 / 75.15 / 60-12
- MAXIMUM FLOW*: 15 m3/h
- MAXIMUM PRESSURE: 25 bar
- MAXIMUM PARTICLE SIZE: 12 mm
- HOPPER CAPACITY: 200 L
- WEIGHT TOTAL MGS: 1040 Kg.
- HEIGHT: 1.400 mm
- LENGTH: 3.100 mm (folded lift) – 4.000 mm (extended lift)
- WIDTH: 1.450 mm
* Depends on the material, consistency and diameter of the tubes.
* Total weight of the pump without stators and rotors.
* Option to mount other models of stators and rotors.
